#295 - Lenticular Holes
We call the convex area enclosed by two circles a lenticular hole if:
- The centres of both circles are on lattice points.
- The two circles intersect at two distinct lattice points.
- The interior of the convex area enclosed by both circles does not contain any lattice points.
Consider the circles:
\(C_0\): \(x^2 + y^2 = 25\)
\(C_1\): \((x + 4)^2 + (y - 4)^2 = 1\)
\(C_2\): \((x - 12)^2 + (y - 4)^2 = 65\)

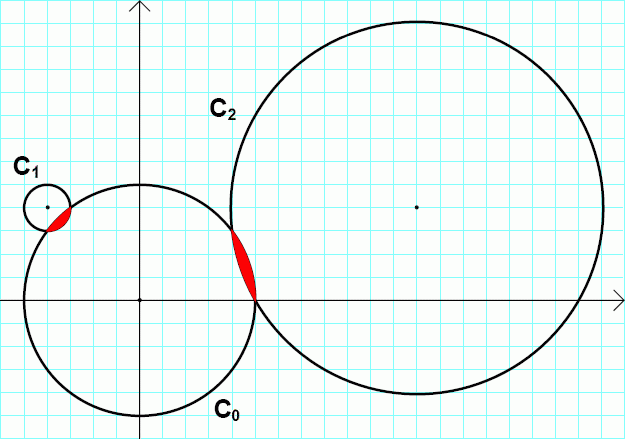

The circles \(C_0\), \(C_1\) and \(C_2\) are drawn in the picture below.
\(C_0\) and \(C_1\) form a lenticular hole, as well as \(C_0\) and \(C_2\).
We call an ordered pair of positive real numbers \((r_1, r_2)\) a lenticular pair if there exist two circles with radii \(r_1\) and \(r_2\) that form a lenticular hole. We can verify that \((1, 5)\) and \((5, \sqrt{65})\) are the lenticular pairs of the example above.
Let \(L(N)\) be the number of distinct lenticular pairs \((r_1, r_2)\) for which \(0 \lt r_1 \le r_2 \le N\).
We can verify that \(L(10) = 30\) and \(L(100) = 3442\).
Find \(L(100\,000)\).
Problem text © Project Euler, licensed under CC BY-NC-SA 4.0. Original: projecteuler.net/problem=295. Published Saturday, 5th June 2010, 01:00 pm. Solved by 565 members at time of mirroring.
Why this is useful
Optimization. The transferable skill is replacing infeasible enumeration with a mathematical reduction - the core move in calibration and large-scale computation (Phases 10, 13).
We classify relevance honestly - not every Euler problem is a trading application.
Prerequisites
Lessons that prepare you:
17.1 Python for Quants: NumPy, pandas, and Vectorization · 19.14 Computational Complexity, Feasibility Estimation, and Proving Algorithms Correct · 19.10 Search: Backtracking, Branch-and-Bound, Binary Search, Meet-in-the-Middle · 3.1 Vectors, Multivariable Functions, and Level Sets
Recommended stepping-stone problems: #892 · #372 · #403
Concepts: computational-geometry geometry brute-force-reduction
Likely techniques: hashing
Learning mode
Pick how much scaffolding you want. Your choice is remembered per problem.
Understand the problem
- What exactly is the input to problem 295? Is it a bound (100000), a supplied dataset, or a definition you must generate from?
- What is the required output - restate it precisely: a single exact integer.
- Which objects exactly are in scope, and which are excluded by the wording (strict vs non-strict inequality, 'distinct', 'proper', 'below' vs 'up to')?
- What do the arguments of L(N), L(10) mean, and what is the value's type (count, sum, probability)?
- What are the edge cases: the smallest legal object, zero/one, ties, and the boundary at exactly 100000?
- Why is brute force hard HERE specifically? Estimate the number of candidates implied by 100000 and the cost of testing one.
- Which computational-geometry fact would, if true, collapse the search - and can you state it as a testable claim before you look for a proof?
Predict & plan (before you code)
- Predict the strategy: in one sentence, what will your solution do? (The classification says computational-geometry / hashing - do you agree, and why?)
- Predict the complexity of your intended method in terms of N = 100000, and the wall-clock time you expect. Write both down now.
- Predict the key data structure: what is stored, keyed by what, and how large will it get at full scale?
- Predict the failure mode: what is most likely to break - an off-by-one on the bound, a definition misread, precision, or memory?
- Predict the output of the small case from rung 3 BEFORE running it - then run it. A surprise here is worth more than an hour of debugging later.
Scratchpad
Mathematical notes, formulas, pseudocode, hypotheses, complexity notes. Saved automatically with your progress.
Python workbench
Real Python (Pyodide) in a sandboxed Web Worker - no network, no filesystem, no DOM access. Ctrl/Cmd+Enter runs. Escape leaves the editor. Stop terminates the worker.
Check your answer
Answers are checked against a salted hash held in a separate file - not printed in this page. This prevents accidental spoilers; it is not cryptographic protection (see the build notes).
Progressive hints
Optimization
You have a correct answer. That is the start of the learning, not the end.
- Reduce the time complexity. What is the bottleneck, and what mathematical fact removes it?
- Reduce memory. Can you stream, or keep only the last k states?
- Replace brute force with a closed form, a sieve, a recurrence, or a symmetry argument.
- Prove the optimized version computes the same thing.
- Compare two implementations and time them.
Explain it
Which step of your solution were you least confident about, and what evidence would settle it?
What did you try first, and what specifically made you abandon it - a proof, a timing, or a wrong small-case answer?
Where did the computational-geometry structure do the real work? Name the single observation that collapsed the search space.
Could you have reached the hashing idea faster? Which words in the statement were pointing at it, and did you notice them?
What was the bug that cost you the most time, and what CLASS of bug was it (off-by-one, definition misread, precision, state under-specified)?
How would your solution change if the bound 100000 were multiplied by 1000? Does it survive, or does it need a different idea?
What is the honest complexity of what you wrote (not what you intended), and where is the remaining slack?
Which problem you have already solved is this most similar to, and what is the shared skeleton - is it really 'hashing' underneath?
State the transferable technique in one sentence, without mentioning this problem's story at all.
Self-assess (mastery is not a correct number)
You reach Mastered only when you have solved it, rated yourself at least Solid across the dimensions, and written a real explanation.
Confidence
Low confidence schedules this problem for spaced review, even if you solved it.
Mastery check
- Variation: change the bound (or a rule) in the statement. Does your method still work? What breaks first?
- Constraints: if the limit were 10× larger, which step fails, and what would you replace it with?
- Related problem: #892 · #372 · #403
- Transfer: where else does this technique appear? Name a lesson and a real computational setting.
- Spaced re-attempt: come back after the review interval and re-solve it with no hints.
