#587 - Concave Triangle

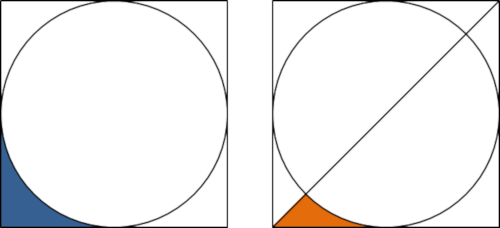

A square is drawn around a circle as shown in the diagram below on the left.
We shall call the blue shaded region the L-section.
A line is drawn from the bottom left of the square to the top right as shown in the diagram on the right.
We shall call the orange shaded region a concave triangle.
It should be clear that the concave triangle occupies exactly half of the L-section.

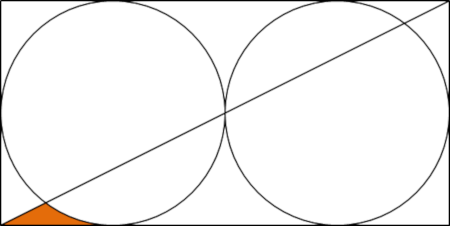

Two circles are placed next to each other horizontally, a rectangle is drawn around both circles, and a line is drawn from the bottom left to the top right as shown in the diagram below.
This time the concave triangle occupies approximately 36.46% of the L-section.
If \(n\) circles are placed next to each other horizontally, a rectangle is drawn around the n circles, and a line is drawn from the bottom left to the top right, then it can be shown that the least value of n for which the concave triangle occupies less than 10% of the L-section is \(n = 15\).
What is the least value of \(n\) for which the concave triangle occupies less than 0.1% of the L-section?
Problem text © Project Euler, licensed under CC BY-NC-SA 4.0. Original: projecteuler.net/problem=587. Published Sunday, 22nd January 2017, 01:00 am. Solved by 3,712 members at time of mirroring.
Why this is useful
Numerical Computing. Precision, conditioning, and numerical iteration transfer directly to pricing engines and model calibration (Phases 5, 13, 15).
We classify relevance honestly - not every Euler problem is a trading application.
Prerequisites
Lessons that prepare you:
19.4 Exact Arithmetic: Big Integers, Rationals, and Floating-Point Traps · 19.10 Search: Backtracking, Branch-and-Bound, Binary Search, Meet-in-the-Middle · 2.4 Taylor Series and Local Approximation · 3.1 Vectors, Multivariable Functions, and Level Sets · 5.1 Floating-Point Arithmetic, Conditioning, and Stability
Recommended stepping-stone problems: #58 · #61 · #85
Concepts: geometry numerical-methods
Likely techniques: meet-in-middle
Learning mode
Pick how much scaffolding you want. Your choice is remembered per problem.
Understand the problem
- What exactly is the input to problem 587? Is it a bound (10), a supplied dataset, or a definition you must generate from?
- What is the required output - restate it precisely: a single exact integer.
- Which objects exactly are in scope, and which are excluded by the wording (strict vs non-strict inequality, 'distinct', 'proper', 'below' vs 'up to')?
- What constraint does the bound 10 impose, and is it inclusive or exclusive?
- What are the edge cases: the smallest legal object, zero/one, ties, and the boundary at exactly 10?
- Why is brute force hard HERE specifically? Estimate the number of candidates implied by 10 and the cost of testing one.
- Which geometry fact would, if true, collapse the search - and can you state it as a testable claim before you look for a proof?
Predict & plan (before you code)
- Predict the strategy: in one sentence, what will your solution do? (The classification says geometry / meet-in-middle - do you agree, and why?)
- Predict the complexity of your intended method in terms of N = 10, and the wall-clock time you expect. Write both down now.
- Predict the key data structure: what is stored, keyed by what, and how large will it get at full scale?
- Predict the failure mode: what is most likely to break - an off-by-one on the bound, a definition misread, precision, or memory?
- Predict the output of the small case from rung 3 BEFORE running it - then run it. A surprise here is worth more than an hour of debugging later.
Scratchpad
Mathematical notes, formulas, pseudocode, hypotheses, complexity notes. Saved automatically with your progress.
Python workbench
Real Python (Pyodide) in a sandboxed Web Worker - no network, no filesystem, no DOM access. Ctrl/Cmd+Enter runs. Escape leaves the editor. Stop terminates the worker.
Check your answer
Answers are checked against a salted hash held in a separate file - not printed in this page. This prevents accidental spoilers; it is not cryptographic protection (see the build notes).
Progressive hints
Optimization
You have a correct answer. That is the start of the learning, not the end.
- Reduce the time complexity. What is the bottleneck, and what mathematical fact removes it?
- Reduce memory. Can you stream, or keep only the last k states?
- Replace brute force with a closed form, a sieve, a recurrence, or a symmetry argument.
- Prove the optimized version computes the same thing.
- Compare two implementations and time them.
Explain it
Which step of your solution were you least confident about, and what evidence would settle it?
What did you try first, and what specifically made you abandon it - a proof, a timing, or a wrong small-case answer?
Where did the geometry structure do the real work? Name the single observation that collapsed the search space.
Could you have reached the meet-in-middle idea faster? Which words in the statement were pointing at it, and did you notice them?
What was the bug that cost you the most time, and what CLASS of bug was it (off-by-one, definition misread, precision, state under-specified)?
How would your solution change if the bound 10 were multiplied by 1000? Does it survive, or does it need a different idea?
What is the honest complexity of what you wrote (not what you intended), and where is the remaining slack?
Which problem you have already solved is this most similar to, and what is the shared skeleton - is it really 'meet-in-middle' underneath?
State the transferable technique in one sentence, without mentioning this problem's story at all.
Self-assess (mastery is not a correct number)
You reach Mastered only when you have solved it, rated yourself at least Solid across the dimensions, and written a real explanation.
Confidence
Low confidence schedules this problem for spaced review, even if you solved it.
Mastery check
- Variation: change the bound (or a rule) in the statement. Does your method still work? What breaks first?
- Constraints: if the limit were 10× larger, which step fails, and what would you replace it with?
- Related problem: #58 · #61 · #85
- Transfer: where else does this technique appear? Name a lesson and a real computational setting.
- Spaced re-attempt: come back after the review interval and re-solve it with no hints.
